Display of Calculated VLE Isotherm: Azeotrope

Isothermal evaluated results (no experimental data ) are displayed as shown here.

Plots of evaluated data are accessed through the Calculated with Multi-Property Equations tree node.

The Display for Non-Azeotropic Data includes other features.

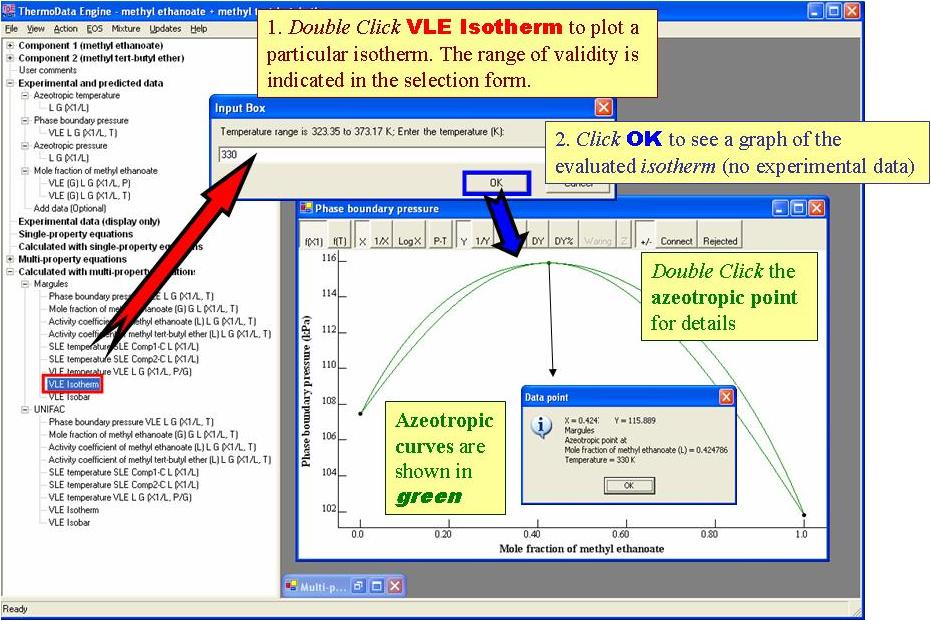

double click VLE isotherm under a EOS in the Calculated with multi-property equation section of the Navigation tree. Enter a valid temperature and click OK to see a plot of the evaluated isotherm. Click on the azeotropic point for more details.

The plot shows isothermal VLE data (with an azeotrope) for the system (methyl ethanoate + methyl tert-butyl ether).
