Component 2 Selection for Binary Mixture

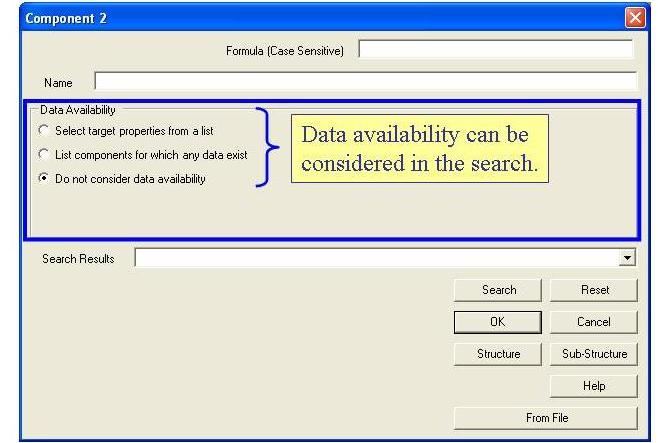

In addition to the search options available for Component 1, the availability of experimental data can be used to restrict the 2nd selection.

There are 3 choices:

• Select Target Properties from a list. (e.g., consider only mixtures with some VLE or azeotropic data)
• List only 2nd components for which any experimental data exist, including thermophysical properties and phase equilibria.
• Data availability is not considered in the search. (Default)

If the molecular structure of a selected compound is not found in the database (as is true for user-defined compounds), you will be asked to draw the structure with the Structure Drawing Form.

NOTE: The structure must be consistent with the molecular formula specified in the Component Selection Form. The user-defined molecular structures can be edited after selecting the menu option Action - Edit Molecular Structure.
