VLE Isopleth Plot for the Peng-Robinson Equation of State (EOS) Model

This feature is available as a sub-node in the Calculated with multi-property equations node of the Navigation Tree.

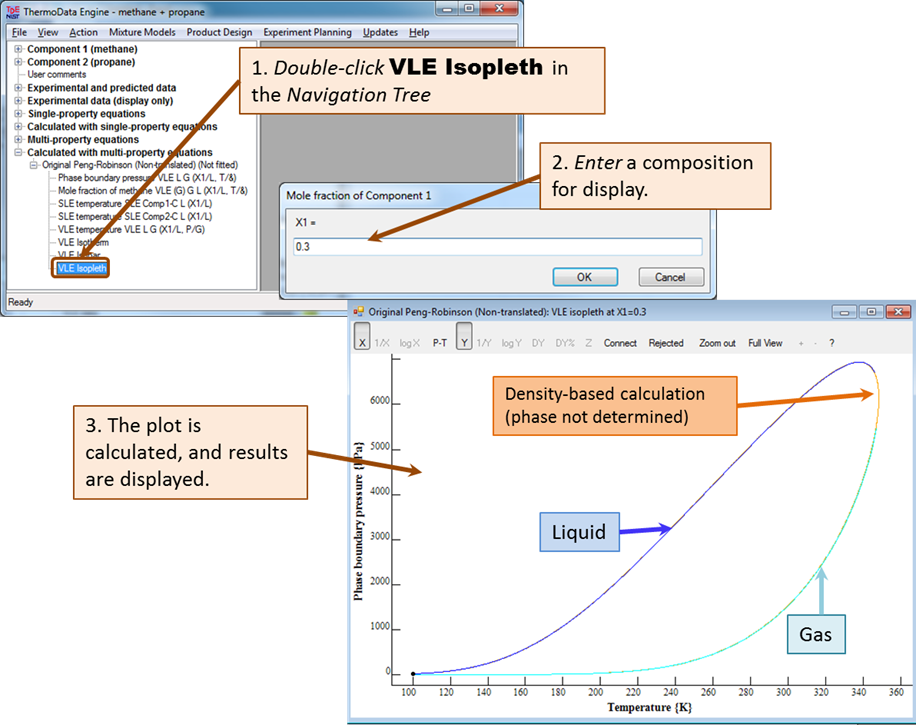

Demonstration of vle isopleth generation: double click a VLE data end node under Calculated with multi-property equations, enter a valid composition, and click OK. Calculated data for liquid is plotted in blue, gas in light blue, and data of an undetermined phase is in orange
